WAN Dashboards

There are two built-in dashboards available in the WAN category that deliver long-term insights on the performance and utilization of an organization’s WAN network, related to service levels of sites, links, traffic, and application metrics.

Dashboard Name	Description
WAN Insights – SRX	This dashboard provides insights on WAN SLE Metrics for SRX Network Link metrics for Org wide WAN links (Avg & Peak utilization, Latency, Jitter packet Loss) Application Distribution by Users Traffic Metrics by Site, SRX, Zone, Time
WAN Insights – SSR	This dashboard provides insights on WAN SLE Metrics for SSR network Link metrics for Org wide WAN links (Avg & Peak utilization, Latency, Jitter packet Loss) Application Distribution & Trends Traffic Metrics

Dashboard Name

Description

WAN Insights – SRX

This dashboard provides insights on

WAN SLE Metrics for SRX Network
Link metrics for Org wide WAN links (Avg & Peak utilization, Latency, Jitter packet Loss)
Application Distribution by Users
Traffic Metrics by Site, SRX, Zone, Time

WAN Insights – SSR

This dashboard provides insights on

WAN SLE Metrics for SSR network
Link metrics for Org wide WAN links (Avg & Peak utilization, Latency, Jitter packet Loss)
Application Distribution & Trends
Traffic Metrics

The following table lists the key insights available

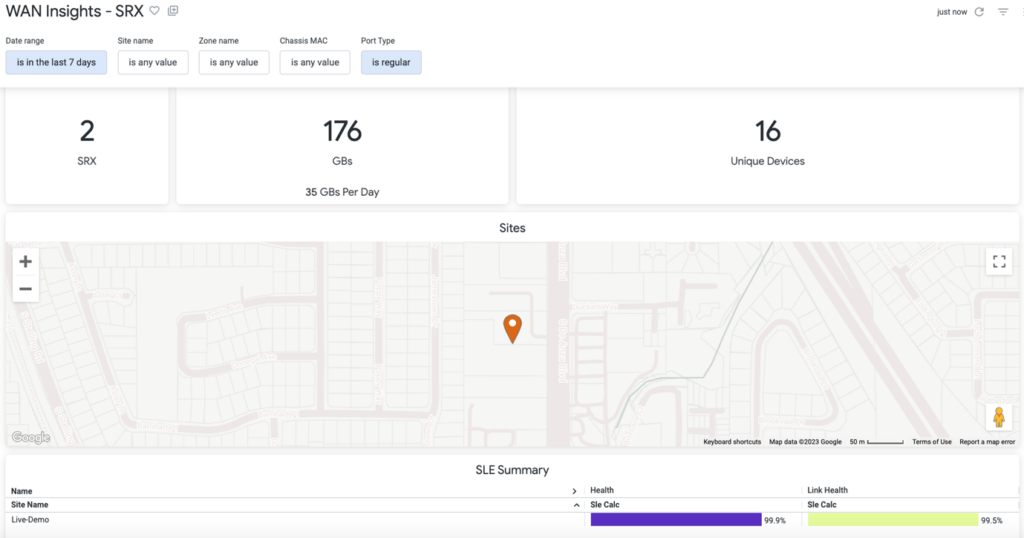

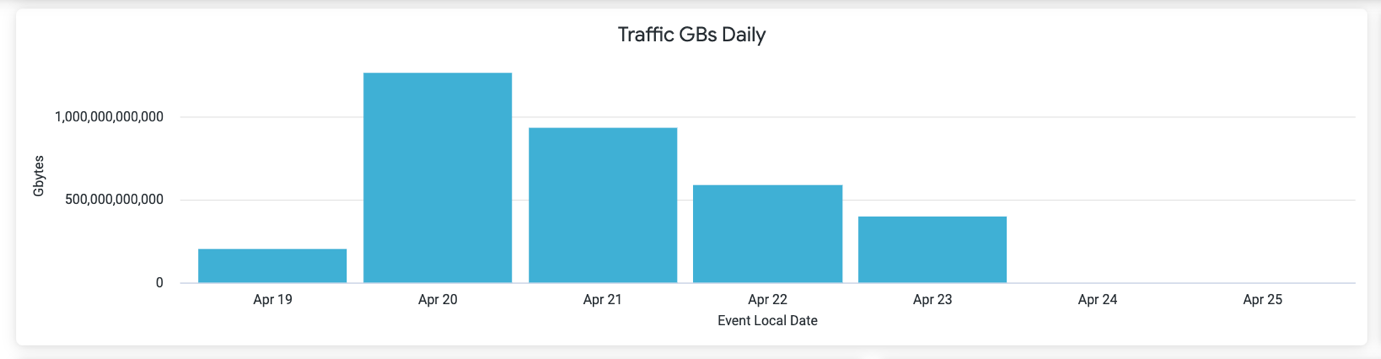

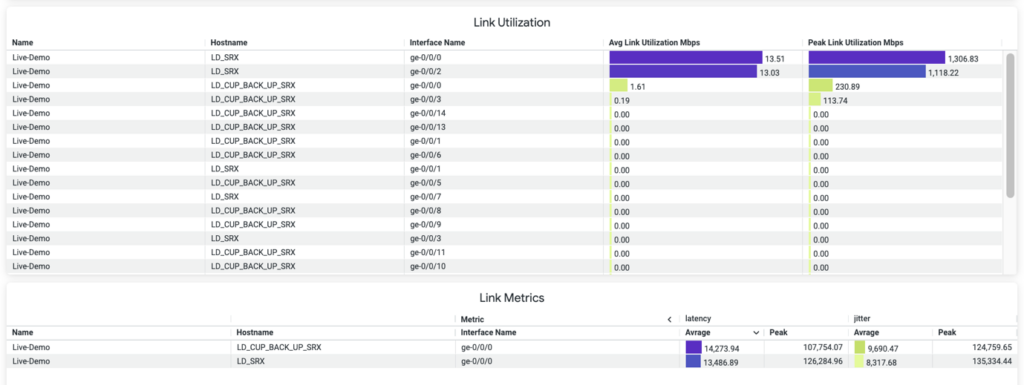

WAN Insights SRX:

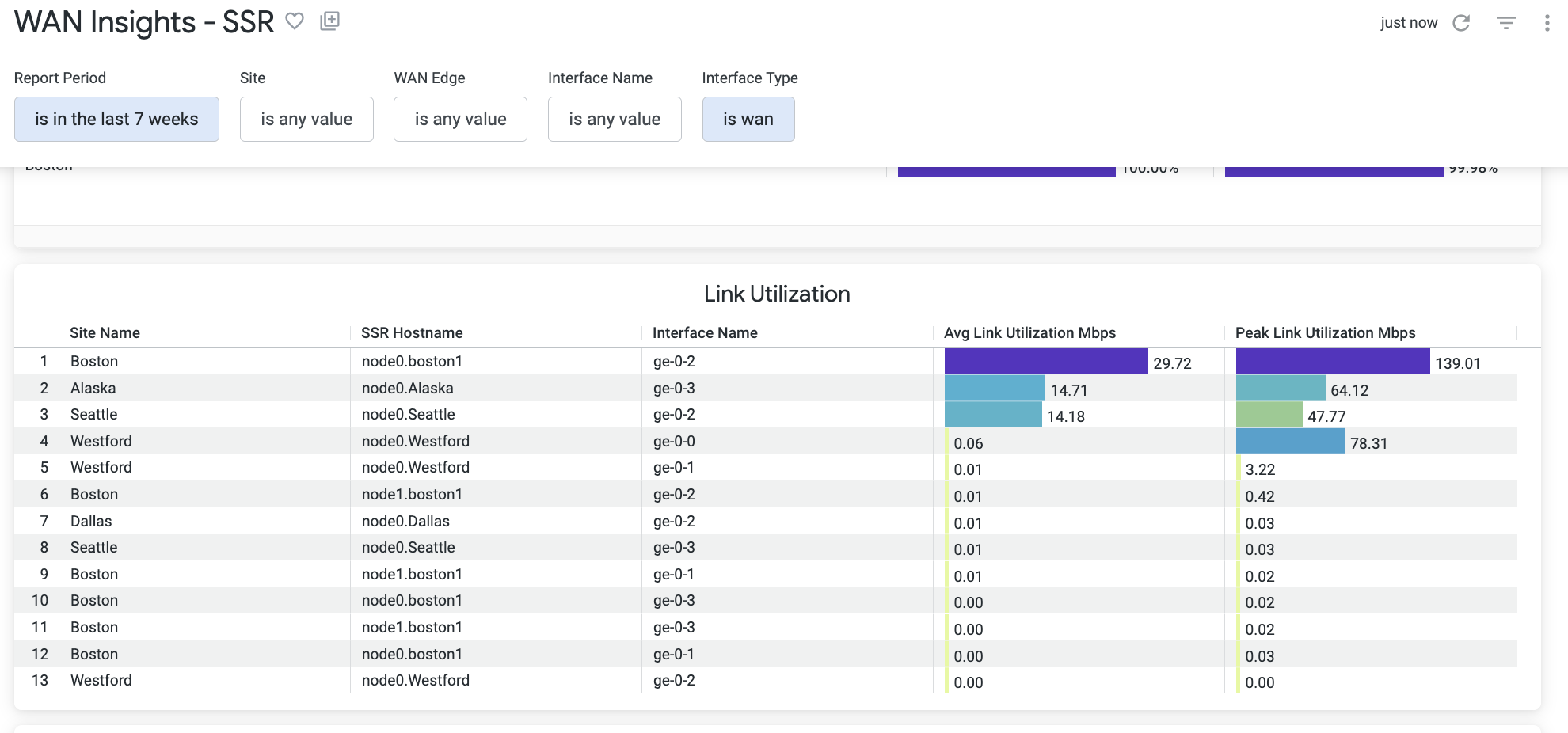

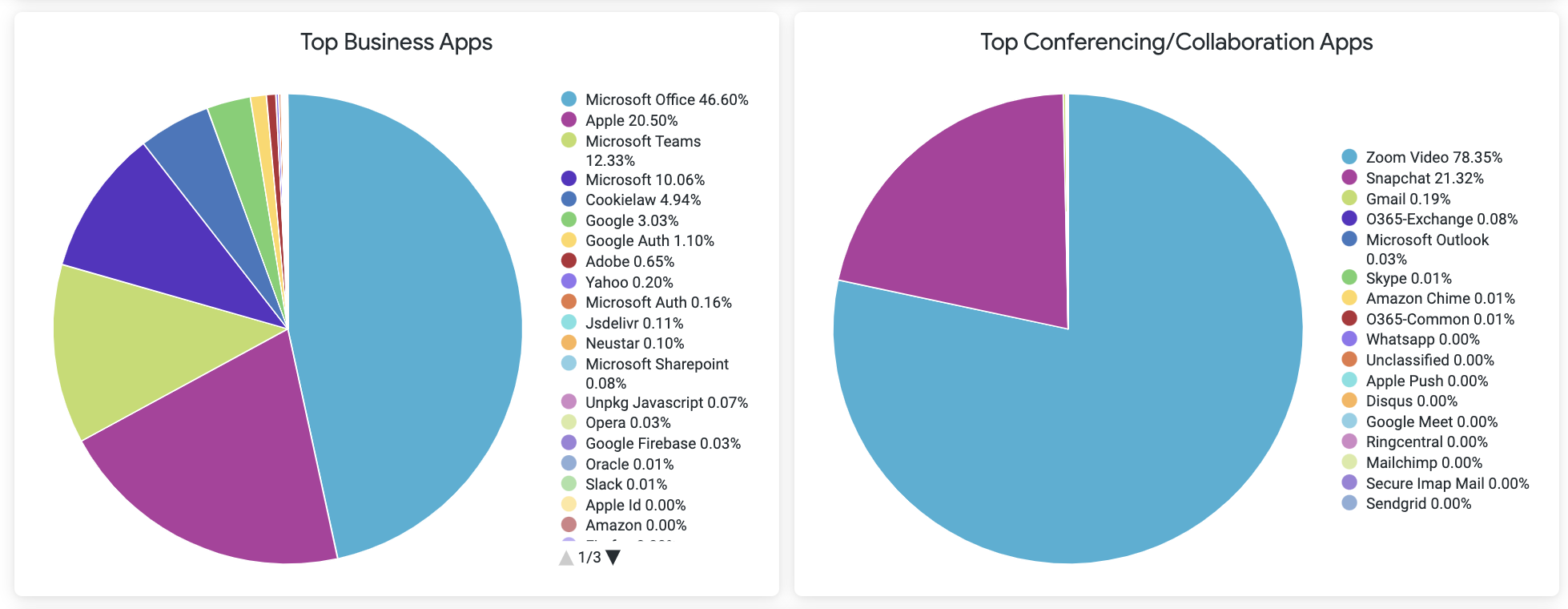

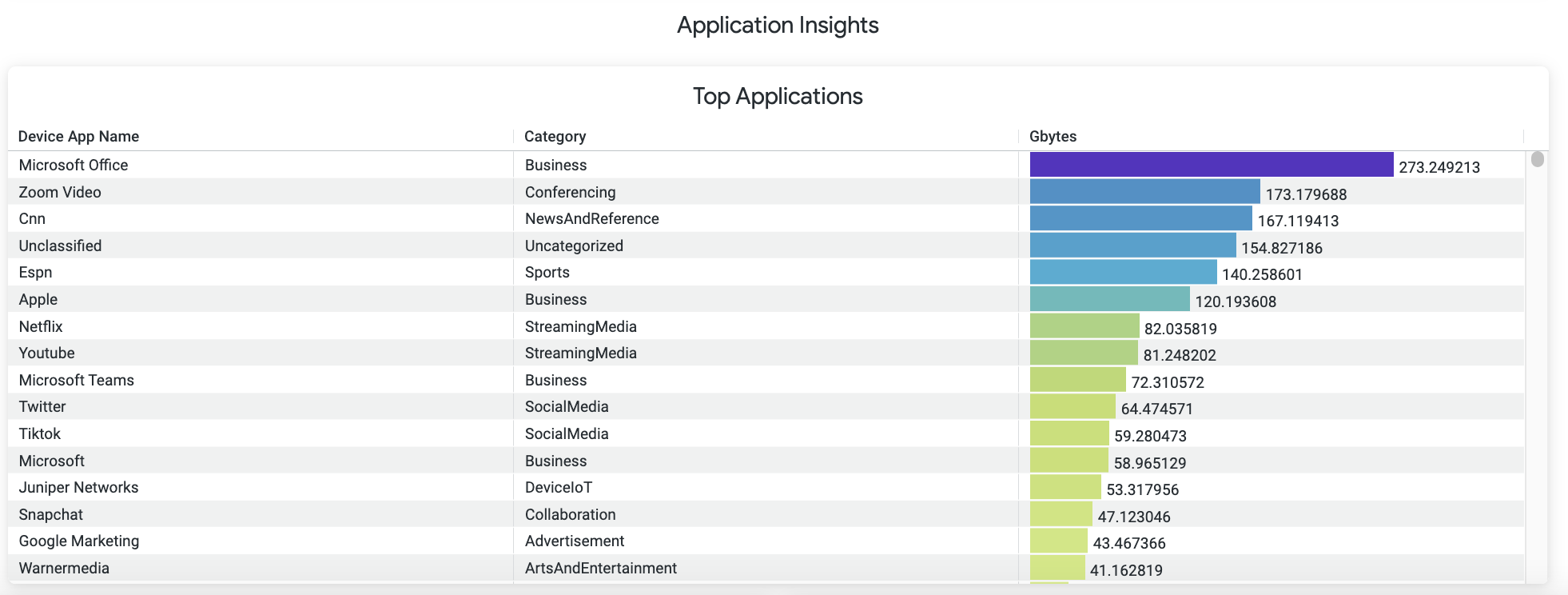

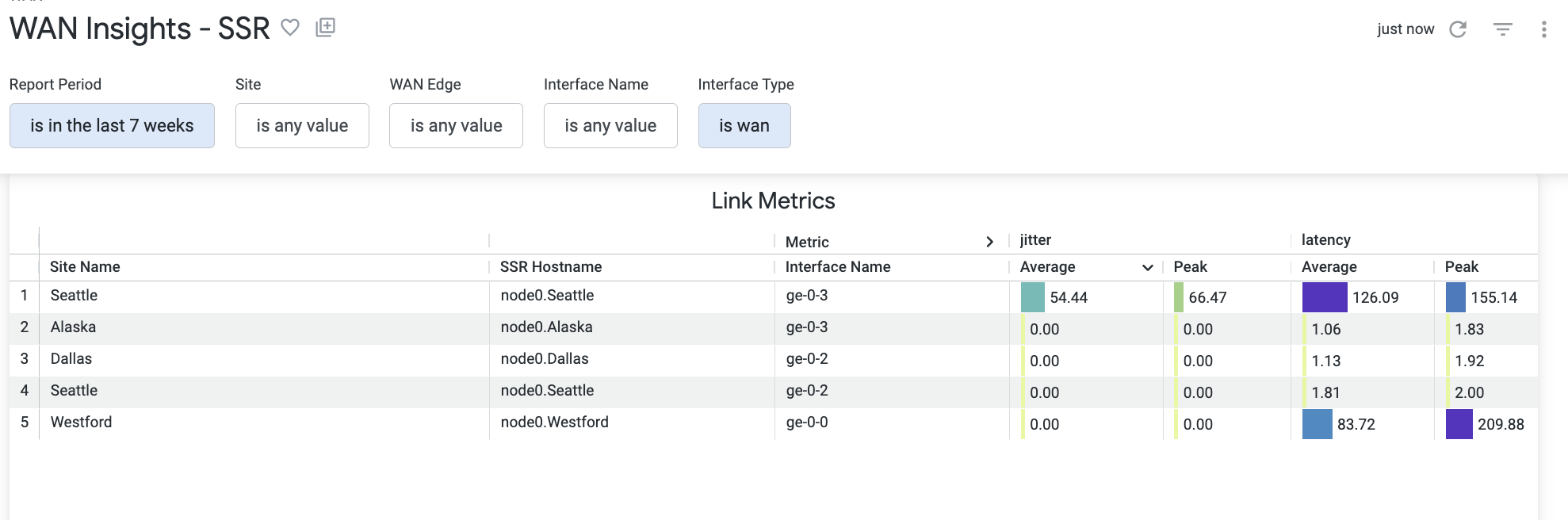

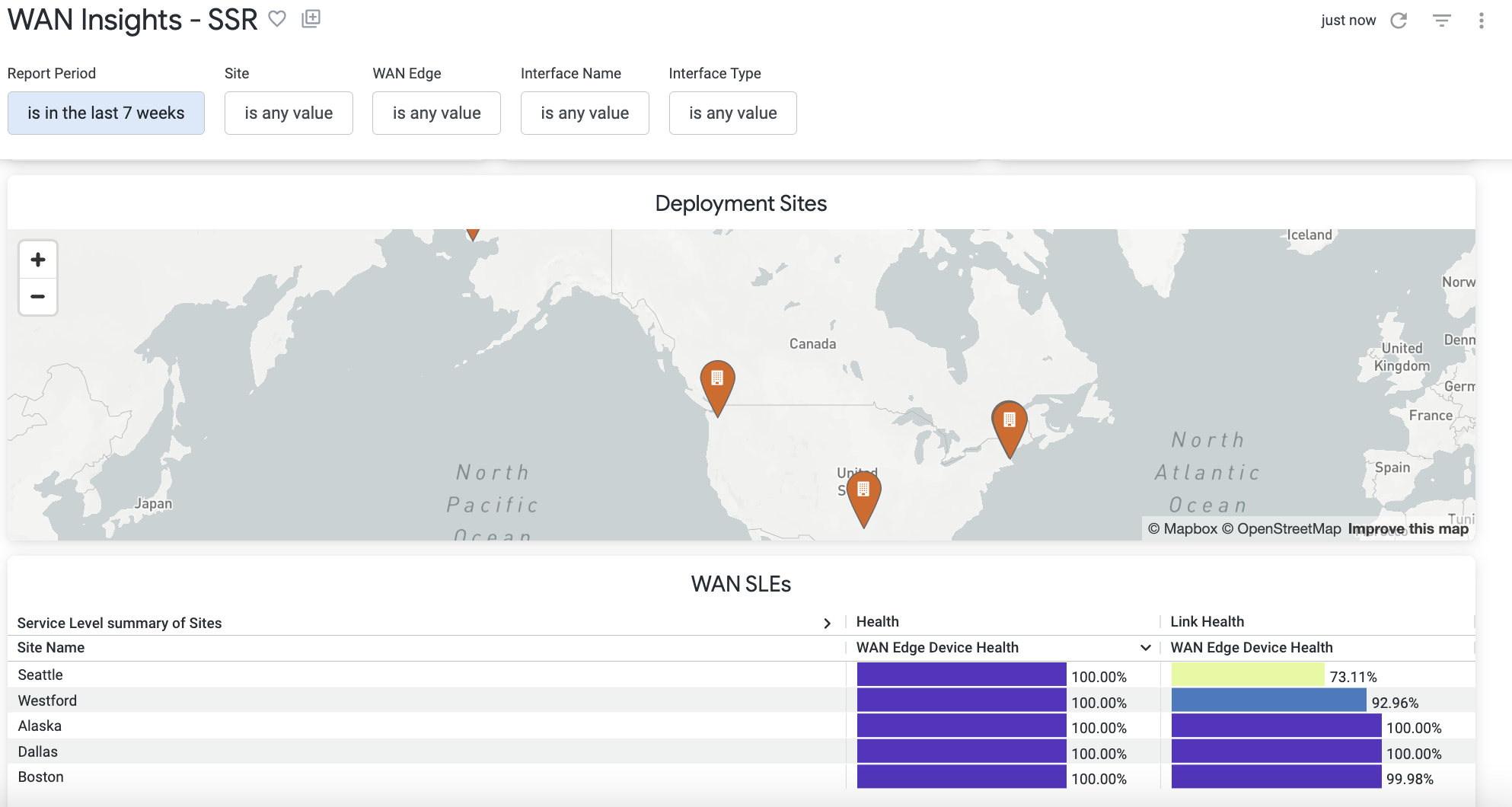

WAN Insights SSR:
