Protect RE is very similar to an L3 filter except that they are applied to LoopBack0 interface.
Protection of Routing Engine is required for two reasons:
- Ensure it accepts traffic only from trusted systems.
- Ensure the Routing Engine is not burning cycles responding to non interesting traffic.
Protecting the Routing Engine involves filtering incoming traffic on the router’s lo0 interface. It is suggested as best practice to enable protection of routing engine on Juniper Switches.
Prerequisites:
Switch should be in connected state and Managed by Mist
Steps to create the Protect_RE from UI:

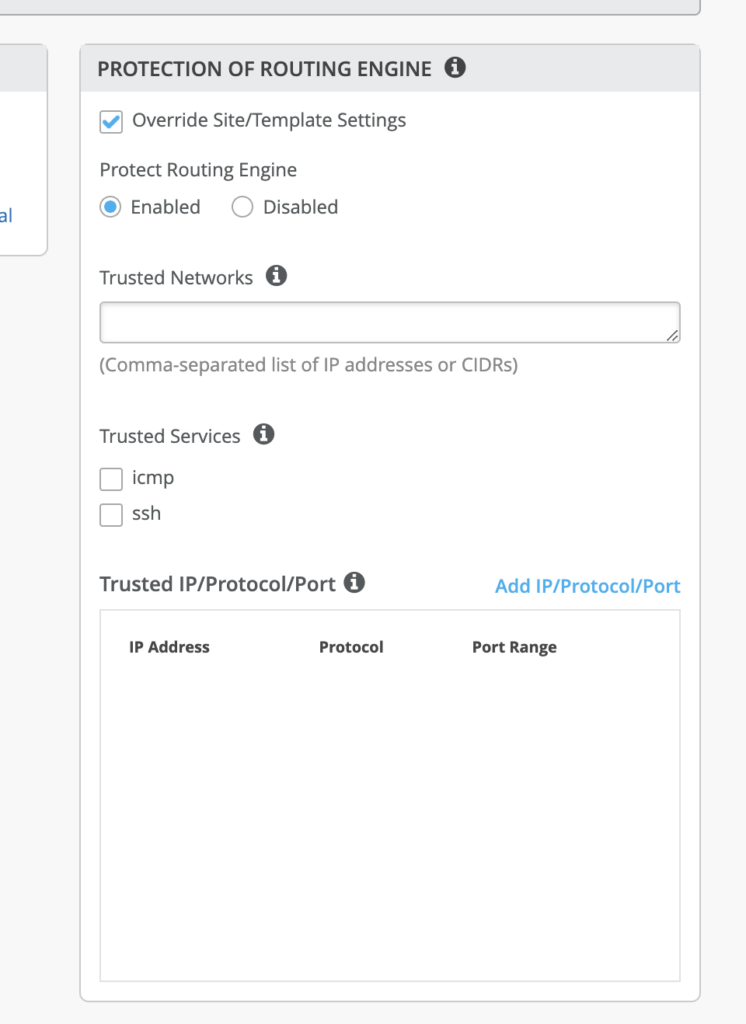

Go to Switches->PROTECTION OF ROUTING ENGINE
When enable the Protect_RE
API:
====

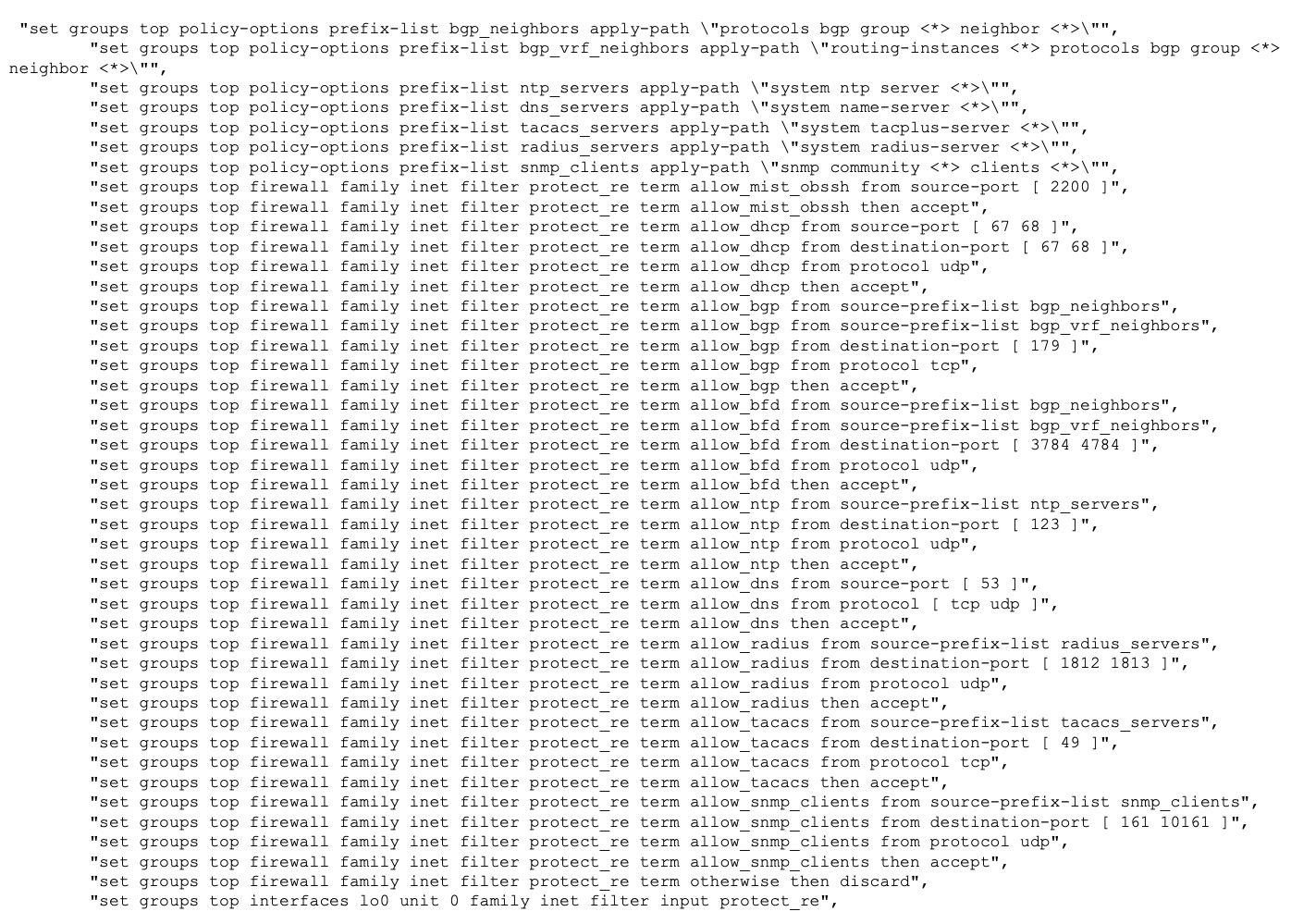

Config_cmd:
===========
By default Mist goes through the config and ensure the following services (if configured) are allowed tp communicate with the switch inbound, when protection of routing engine is enabled:
- BGP
- BFD
- NTP
- DNS
- SNMP
- Tacacs
- Radius
If you need additional services that need access to the switch, you use the trusted networks/Services section.
- If you would need to be able to ssh into the box: Please select the ssh option under Trusted Services
- If you would need to allow switch to respond to pings: Please select the icmp option under Trusted Services
If you have other segments that you would like to reach the switch from, you can add them under Trusted Networks or Trusted IP/Port/Protocol.

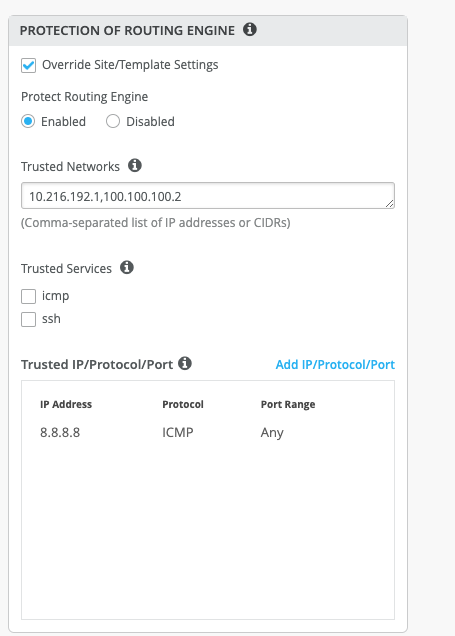

Add the trusted networks:

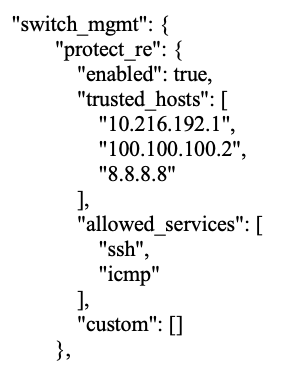

API:
config_cmd:
=============
set groups top firewall family inet filter protect_re term allow_mist_obssh from source-port [ 2200 ]", "set groups top firewall family inet filter protect_re term allow_mist_obssh then accept", "set groups top firewall family inet filter protect_re term allow_dhcp from source-port [ 67 68 ]", "set groups top firewall family inet filter protect_re term allow_dhcp from destination-port [ 67 68 ]", "set groups top firewall family inet filter protect_re term allow_dhcp from protocol udp", "set groups top firewall family inet filter protect_re term allow_dhcp then accept", "set groups top firewall family inet filter protect_re term allow_bgp from source-prefix-list bgp_neighbors", "set groups top firewall family inet filter protect_re term allow_bgp from source-prefix-list bgp_vrf_neighbors", "set groups top firewall family inet filter protect_re term allow_bgp from destination-port [ 179 ]", "set groups top firewall family inet filter protect_re term allow_bgp from protocol tcp", "set groups top firewall family inet filter protect_re term allow_bgp then accept", "set groups top firewall family inet filter protect_re term allow_bfd from source-prefix-list bgp_neighbors", "set groups top firewall family inet filter protect_re term allow_bfd from source-prefix-list bgp_vrf_neighbors", "set groups top firewall family inet filter protect_re term allow_bfd from destination-port [ 3784 4784 ]", "set groups top firewall family inet filter protect_re term allow_bfd from protocol udp", "set groups top firewall family inet filter protect_re term allow_bfd then accept", "set groups top firewall family inet filter protect_re term allow_ntp from source-prefix-list ntp_servers", "set groups top firewall family inet filter protect_re term allow_ntp from destination-port [ 123 ]", "set groups top firewall family inet filter protect_re term allow_ntp from protocol udp", "set groups top firewall family inet filter protect_re term allow_ntp then accept", "set groups top firewall family inet filter protect_re term allow_dns from source-port [ 53 ]", "set groups top firewall family inet filter protect_re term allow_dns from protocol [ tcp udp ]", "set groups top firewall family inet filter protect_re term allow_dns then accept", "set groups top firewall family inet filter protect_re term allow_radius from source-prefix-list radius_servers", "set groups top firewall family inet filter protect_re term allow_radius from destination-port [ 1812 1813 ]", "set groups top firewall family inet filter protect_re term allow_radius from protocol udp", "set groups top firewall family inet filter protect_re term allow_radius then accept", "set groups top firewall family inet filter protect_re term allow_tacacs from source-prefix-list tacacs_servers", "set groups top firewall family inet filter protect_re term allow_tacacs from destination-port [ 49 ]", "set groups top firewall family inet filter protect_re term allow_tacacs from protocol tcp", "set groups top firewall family inet filter protect_re term allow_tacacs then accept", "set groups top firewall family inet filter protect_re term allow_snmp_clients from source-prefix-list snmp_clients", "set groups top firewall family inet filter protect_re term allow_snmp_clients from destination-port [ 161 10161 ]", "set groups top firewall family inet filter protect_re term allow_snmp_clients from protocol udp", "set groups top firewall family inet filter protect_re term allow_snmp_clients then accept", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 10-216-192-1_32", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 100-100-100-2_32", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 8-8-8-8_32", "set groups top firewall family inet filter protect_re term trusted_hosts then accept", "set groups top firewall family inet filter protect_re term otherwise then discard", "set groups top interfaces lo0 unit 0 family inet filter input protect_re",
Test the Functionality:
set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 10-216-192-1_32 set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 100-100-100-2_32 set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 8-8-8-8_32 set groups top firewall family inet filter protect_re term trusted_hosts then accept set groups top firewall family inet filter protect_re term otherwise then log set groups top firewall family inet filter protect_re term otherwise then syslog set groups top firewall family inet filter protect_re term otherwise then discard
{master:0}
mist@Border-switch-R2-U21>
{master:0}
mist@Border-switch-R2-U21>
{master:0}
mist@Border-switch-R2-U21>
{master:0}
mist@Border-switch-R2-U21> show bgp summary
Warning: License key missing; One or more members of the VC require ‘bgp’ license
Threading mode: BGP I/O Default eBGP mode: advertise - accept, receive - accept Groups: 2 Peers: 4 Down peers: 0 Table Tot Paths Act Paths Suppressed History Damp State Pending inet.0 10 6 0 0 0 0 bgp.evpn.0 68 34 0 0 0 0 Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 10.255.240.3 65002 101 103 0 1 42:08 Establ inet.0: 3/5/5/0 10.255.240.5 65003 35 33 0 3 11:51 Establ inet.0: 3/5/5/0 100.100.100.2 65002 206 209 0 0 1:06:18 Establ bgp.evpn.0: 25/34/34/0 default-switch.evpn.0: 22/30/30/0 default_evpn.evpn.0: 0/0/0/0 100.100.100.3 65003 57 55 0 3 11:48 Establ bgp.evpn.0: 9/34/34/0 default-switch.evpn.0: 8/30/30/0 default_evpn.evpn.0: 0/0/0/0
try to ping 100.100.100.2 from DUT:
mist@Border-switch-R2-U21> ping 100.100.100.2
PING 100.100.100.2 (100.100.100.2): 56 data bytes
64 bytes from 100.100.100.2: icmp_seq=0 ttl=64 time=2.695 ms
64 bytes from 100.100.100.2: icmp_seq=1 ttl=64 time=8.756 ms
64 bytes from 100.100.100.2: icmp_seq=2 ttl=64 time=13.312 ms
64 bytes from 100.100.100.2: icmp_seq=3 ttl=64 time=9.025 ms
--- 100.100.100.2 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max/stddev = 2.695/8.447/13.312/3.781 ms
{master:0}
mist@Border-switch-R2-U21> ssh root@100.100.100.3
{master:0}
mist@Border-switch-R2-U21> ssh root@100.100.100.2
Password:
Last login: Fri Feb 3 04:57:20 2023 from 10.255.240.2
--- JUNOS 21.3R1.9 Kernel 64-bit JNPR-12.1-20210828.6e5b1bf_buil
root@CORE-1:RE:0%
Try to ping/ssh other than trusted networks:
mist@Border-switch-R2-U21> ssh root@100.100.100.3 {master:0} mist@Border-switch-R2-U21> ssh root@100.100.100.4 {master:0} mist@Border-switch-R2-U21> ping 100.100.100.3 PING 100.100.100.3 (100.100.100.3): 56 data bytes --- 100.100.100.3 ping statistics --- 3 packets transmitted, 0 packets received, 100% packet loss {master:0} mist@Border-switch-R2-U21> ping 100.100.100.4 PING 100.100.100.4 (100.100.100.4): 56 data bytes --- 100.100.100.4 ping statistics --- 5 packets transmitted, 0 packets received, 100% packet loss {master:0} mist@Border-switch-R2-U21>

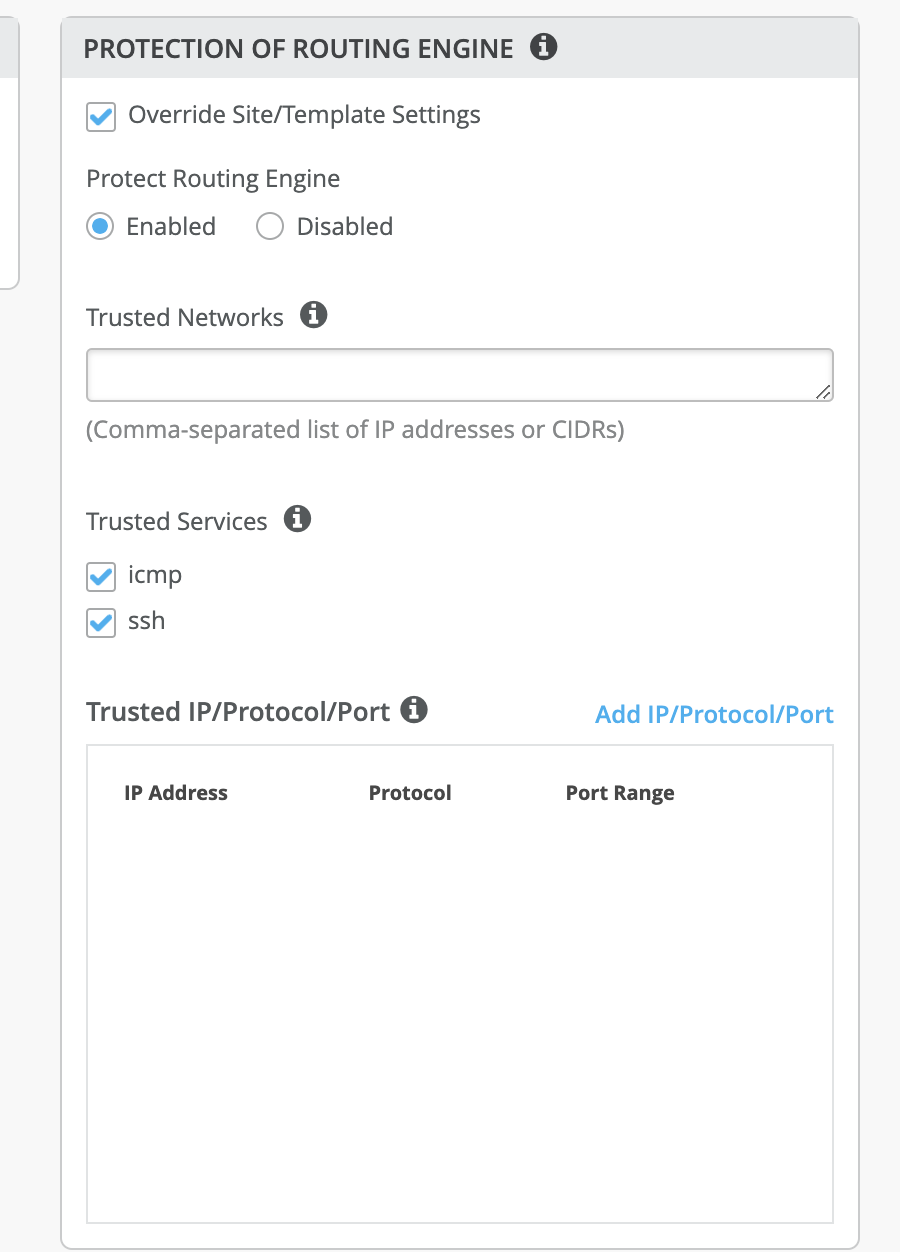

Add the Trusted Services (SSH) alone in PROTECTION OF ROUTING ENGINE:
API:
config_cmd:
"set groups top interfaces lo0 unit 0 family inet filter input protect_re", "set groups top firewall family inet filter protect_re term allow_mist_obssh from source-port [ 2200 ]", "set groups top firewall family inet filter protect_re term allow_mist_obssh then accept", "set groups top firewall family inet filter protect_re term allow_dhcp from source-port [ 67 68 ]", "set groups top firewall family inet filter protect_re term allow_dhcp from destination-port [ 67 68 ]", "set groups top firewall family inet filter protect_re term allow_dhcp from protocol udp", "set groups top firewall family inet filter protect_re term allow_dhcp then accept", "set groups top firewall family inet filter protect_re term allow_bgp from source-prefix-list bgp_neighbors", "set groups top firewall family inet filter protect_re term allow_bgp from source-prefix-list bgp_vrf_neighbors", "set groups top firewall family inet filter protect_re term allow_bgp from destination-port [ 179 ]", "set groups top firewall family inet filter protect_re term allow_bgp from protocol tcp", "set groups top firewall family inet filter protect_re term allow_bgp then accept", "set groups top firewall family inet filter protect_re term allow_bfd from source-prefix-list bgp_neighbors", "set groups top firewall family inet filter protect_re term allow_bfd from source-prefix-list bgp_vrf_neighbors", "set groups top firewall family inet filter protect_re term allow_bfd from destination-port [ 3784 4784 ]", "set groups top firewall family inet filter protect_re term allow_bfd from protocol udp", "set groups top firewall family inet filter protect_re term allow_bfd then accept", "set groups top firewall family inet filter protect_re term allow_ntp from source-prefix-list ntp_servers", "set groups top firewall family inet filter protect_re term allow_ntp from destination-port [ 123 ]", "set groups top firewall family inet filter protect_re term allow_ntp from protocol udp", "set groups top firewall family inet filter protect_re term allow_ntp then accept", "set groups top firewall family inet filter protect_re term allow_dns from source-port [ 53 ]", "set groups top firewall family inet filter protect_re term allow_dns from protocol [ tcp udp ]", "set groups top firewall family inet filter protect_re term allow_dns then accept", "set groups top firewall family inet filter protect_re term allow_radius from source-prefix-list radius_servers", "set groups top firewall family inet filter protect_re term allow_radius from destination-port [ 1812 1813 ]", "set groups top firewall family inet filter protect_re term allow_radius from protocol udp", "set groups top firewall family inet filter protect_re term allow_radius then accept", "set groups top firewall family inet filter protect_re term allow_tacacs from source-prefix-list tacacs_servers", "set groups top firewall family inet filter protect_re term allow_tacacs from destination-port [ 49 ]", "set groups top firewall family inet filter protect_re term allow_tacacs from protocol tcp", "set groups top firewall family inet filter protect_re term allow_tacacs then accept", "set groups top firewall family inet filter protect_re term allow_snmp_clients from source-prefix-list snmp_clients", "set groups top firewall family inet filter protect_re term allow_snmp_clients from destination-port [ 161 10161 ]", "set groups top firewall family inet filter protect_re term allow_snmp_clients from protocol udp", "set groups top firewall family inet filter protect_re term allow_snmp_clients then accept", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 10-216-192-1_32", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 100-100-100-2_32", "set groups top firewall family inet filter protect_re term trusted_hosts from source-prefix-list 8-8-8-8_32", "set groups top firewall family inet filter protect_re term trusted_hosts then accept", "set groups top firewall family inet filter protect_re term allow_ssh from destination-port [ 22 ]", "set groups top firewall family inet filter protect_re term allow_ssh from protocol tcp", "set groups top firewall family inet filter protect_re term allow_ssh then accept", "set groups top firewall family inet filter protect_re term allow_icmp from protocol icmp", "set groups top firewall family inet filter protect_re term allow_icmp then accept", "set groups top firewall family inet filter protect_re term otherwise then discard", '
Functionality test for Trusted services:
login to the any other devices apart from trusted networks and DUT
====================================================
mist@Distribution-2-R2-U07-> ping 100.100.100.1
PING 100.100.100.1 (100.100.100.1): 56 data bytes
64 bytes from 100.100.100.1: icmp_seq=0 ttl=63 time=36.941 ms
64 bytes from 100.100.100.1: icmp_seq=1 ttl=63 time=45.158 ms
--- 100.100.100.1 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max/stddev = 36.941/41.050/45.158/4.108 ms
{master:0}
mist@Distribution-2-R2-U07-> ssh root@100.100.100.1
Password:
Last login: Fri Feb 3 07:23:35 2023 from 10.216.201.35
--- JUNOS 22.2R1.12 Kernel 64-bit JNPR-12.1-20220623.dbb31e0_buil
root@Border-switch-R2-U21:RE:0%
How to check the discarded packets :
Add the Additional cli commands in the device as below:
===========================================
set groups top firewall family inet filter protect_re term otherwise then log set groups top firewall family inet filter protect_re term otherwise then syslog mist@Distribution-1-R2-U06-> show firewall log Log : Time Filter Action Interface Protocol Src Addr Dest Addr 13:20:01 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:56 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:51 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:45 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:40 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:35 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:19:30 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:26 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:19 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:18 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 13:18:14 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:12 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 13:18:09 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:04 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 13:18:01 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 13:18:00 pfe D vtep.32769 UDP 0.0.0.0 255.255.255.255 14:17:31 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:30 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:17:28 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:28 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:26 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:17:23 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:18 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:16 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:15 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:17:12 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:10 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:09 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:17:07 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:06 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:05 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:17:03 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:17:02 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:17:01 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:57 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:52 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:51 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:50 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:46 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:45 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:44 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:41 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:41 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:40 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:38 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:36 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:36 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:31 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:26 protect_re D vme.0 UDP 10.216.199.80 255.255.255.255 14:16:26 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:25 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:20 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6 14:16:19 protect_re D vme.0 UDP 8.8.8.8 10.216.202.6 14:16:16 protect_re D vme.0 UDP 66.129.233.81 10.216.202.6
