Full Stack SRX

Modified on



Create a Topology with EX-Switch and Mist AP for Wired/Wireless Assurance Lab



With this slight Lab modification, we can test the full-Stack End to End Solution for the Juniper enabled Branch. Naturally you need at minimum one additional EX-Switch (better two if you want to test VC as well) and if possible a Mist AP.

The new Topology should then look like the below

We must change some interfaces on the Lab-Switch. This is because:

  • Desktop3 VM (VLAN1077) is re-used (and no longer attached to Spoke3) to act as a viewer for the Raspberry Pi acting as Wi-Fi Client. Alternatively one can use a local Notebook as well.
  • Desktop1 VM (VLAN1099) is no longer directly attached to Spoke1 and now needs to be re-attached to the Interface ge-0/0/0 of the new Branch Switch.

Next, we need to create a Template for the Switch attached Spoke. Go to Organization -> WAN Edge Templates.

You can avoid the work creating this Template if you simply import the shared JSON from chapter 5.1.3 below . Remember still you must do the Site assignments after this.

We create the new Spoke Template via GUI. Click on the existing “Spokes”-Template

Clone this Template

Configure the clone Name=Spokes-with-Switch and click on “Clone”

BEST PRACTICE: Always refresh your Browser after you cloned something. This will make sure all objects are REALLY refreshed!

On the LAN-Interface configuration we will edit the existing Interface “LAN1”

Change the “SPOKE-LAN1” LAN-Interface

  • We use two new interfaces that are bundled instead of the old. In our case the Interfaces should now be=ge-0/0/5,ge-0/0/6.
  • Port Aggregation=Enable
  • Enable Force Up=Enable as the Switch behind the Router unlikely has a valid LACP config yet. The is a best practice when the Switch has no dedicated OOB-Interface in the LAG and is going to be in-band managed. It will prevent that this Switch does not loose the connection towards Mist Cloud we you have not configured his side of the LAG yet.
  • Set the AE Index=0 as we do not have any other LAG port enabled.

Further configuration on the “SPOKE-LAN1” LAN-Interface

  • Set Untagged VLAN=Yes as we want the VLAN Access/Native to also handout DHCP-Leases to the Switch. Else we would need to set the site variable {{SPOKE_LAN1_VLAN}} to “0” to have the same effect.
  • Set DHCP=Server
  • Set IP Start={{SPOKE_LAN1_PFX}}.100
  • Set IP End={{SPOKE_LAN1_PFX}}.199
  • Set Gateway={{SPOKE_LAN1_PFX}}.1
  • Set DNS Servers=8.8.8.8, 9.9.9.9

The changed LAN-Interface overview should now look like this.

Save your changes.

Now we need to assign the new Profile to a Site to be used then.

Make sure you use the right Template and then change it for spoke-site1. The hit “apply”.

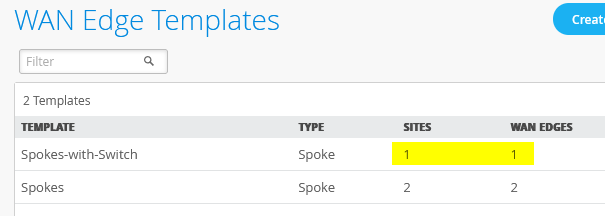

Review your changed Template overview Pane.

Now it is time to onboard your Switch and add it to your infrastructure please follow the steps in Chapter 2.2 above for a Switch.

Go to Organization -> Inventory

Make sure the Inventory-View is set to “(Entire Org)” as below and hit the refresh-Button on your Browser until you hopefully see all your devices. Then select your Switch and “Assign to Site”

Select “spoke1-site” and do not manage the configuration directly before you “Assign to Site”.

A dialogue about that operation will be displayed.

Go to Switches where site=”spoke1-site”

Verify or set the device name and “Enable Configuration Management”

Under Port Configuration add a new Port range.

Now configure the following:

  • Enable Port Aggregation.
  • Set the AE Index=0 make sure the AE-Index is the same on BOTH sides.
  • Set the Port IDs=ge-0/0/1-2 as we have two ports for the LAG.
  • Select the existing Configuration Profile=Uplink

Check that your new Port Profile looks like the below now.

“Save” your changes.



OPTIONAL: It is all is good via Remote Shell check that your Switch has the two links towards SRX Router working.

show lacp interfaces
Aggregated interface: ae0
LACP state: Role Exp Def Dist Col Syn Aggr Timeout Activity
ge-0/0/1 Actor No No Yes Yes Yes Yes Fast Active
ge-0/0/1 Partner No No Yes Yes Yes Yes Fast Active
ge-0/0/2 Actor No No Yes Yes Yes Yes Fast Active
ge-0/0/2 Partner No No Yes Yes Yes Yes Fast Active
LACP protocol: Receive State Transmit State Mux State
ge-0/0/1 Current Fast periodic Collecting distributing
ge-0/0/2 Current Fast periodic Collecting distributing
