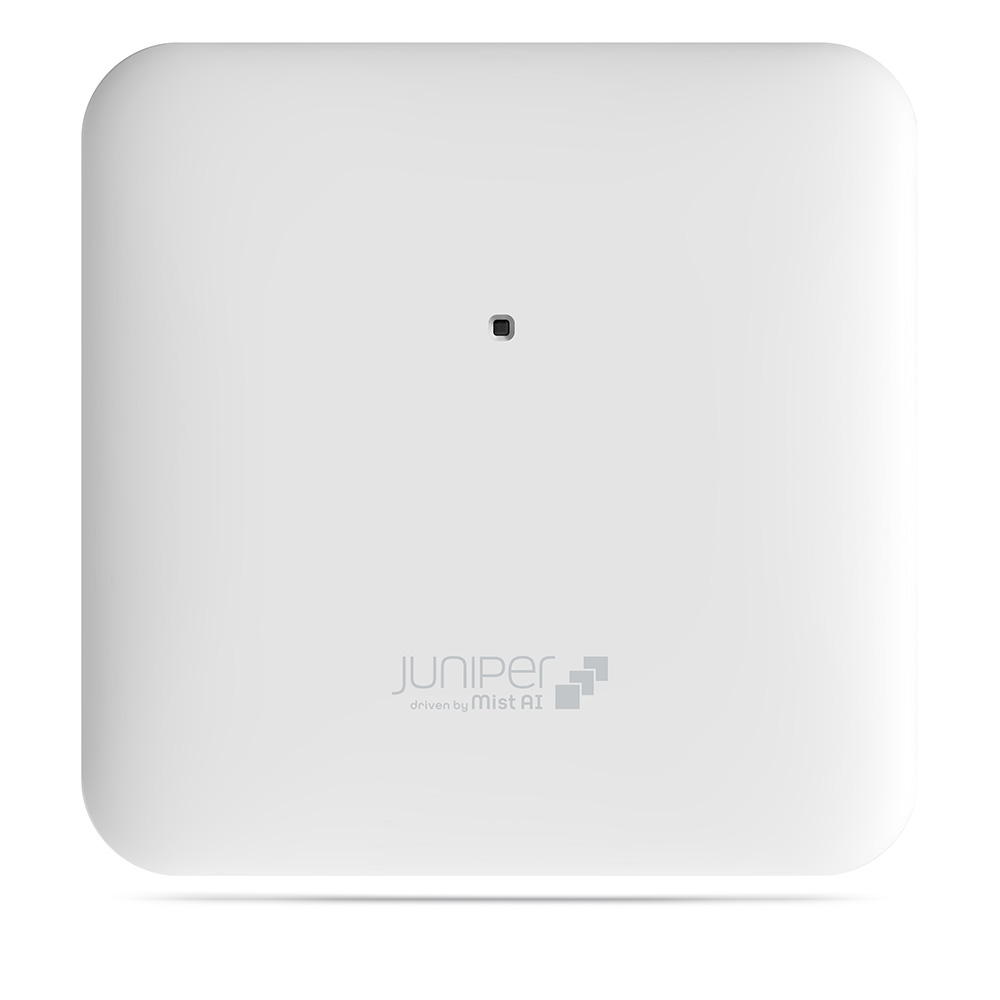

AP43(E) ACCESS POINT SERIES
The AP43 Series is a tri-radio, 4×4, 802.11ax access point. The 3rd radio functions as a network, location, and security sensor. It can also function as a synthetic test client radio, as well as a spectrum monitor. The AP43 also includes 802.11ax, which introduces OFDMA (Orthogonal Frequency Division Multiple Access), Multi-User MIMO (MU-MIMO) and BSS Coloring, all of which allow for more efficient spectrum utilization in high-density, high-performance Wi-Fi environments.
An example of a professional AP43(E) installation
802.11ax (Wi-Fi 6)
- OFDMA
- 1024-QAM
- MU MIMO
- Target Wake Time (TWT)
- Spatial Frequency Reuse (BSS Coloring)
- Backwards compatibility with 802.11a/b/g/n/ac.
2.4 Ghz
- 4×4 : 4 802.11ax up to 1,148 Mbps data rate
5 Ghz
- 4×4 : 4 802.11ax up to 2,400 Mbps data rate
Dedicated 3rd Radio
- 2×2 : 2SS, Dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Power
- 802.3at PoE, 802.3bt PoE, 12V/3A DC power supply
Sensors
- Humidity
- Pressure
- Temperature
IOT Port
- 8-pin interface for digital I/O and analog input (0 to +5V)
Ethernet 0
- 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD
Ethernet 1
- 10/100/1000Base-T; RJ45; optional PoE PSE mode (requires 802.3bt on Eth0)
